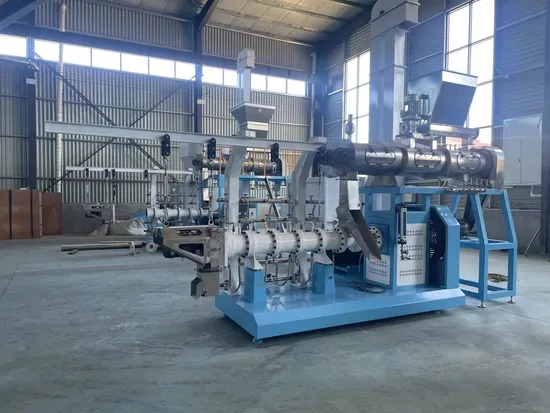

Pet Dog Food Plant Production Line Fish Feed Equipment Manufacturing Extruder Machine Corn Puff Food Machine Dry Cat Food Pet Animal Making Extruder Sinking

• Overview
• Product Description
• Detailed Photos
• Final products
• Our factory
• Certifications
• Packaging & Shipping

Overview

Basic Info.

Model NO.	DGP-40 DGP-60 DGP-90 DSP 85-B DSP 90-B DSP100-B DS
Power Source	Electric
Process	Thermal Processing
Automatic Grade	Automatic
Application	Dog, Fish, Cat, Bird
Feed Type	Soybean Meal
Customized	Customized
Transport Package	Directly Loaded in The Container
Specification	1-2-3-4-5-6mm
Trademark	Zhongdebao
Origin	China
HS Code	8438800000
Production Capacity	300-5000kg/H

Packaging & Delivery

Package Size10000.00cm * 7500.00cm * 8000.00cm Package Gross Weight45000.000kg

Product Description

Big capacity pet food extruder dry wet type cat dog fish food making machine with low price corn soybean processing machine

Pet food extruder line exported to Korea

Dry type pet cat dog floating fish extruder machine

1.DGP series feed puffing machine model built-in screw, screw sleeve lengthened, material rotary cutting time is long, temperature can be adjusted, output torque can be adjusted, so that the material made of high puffing degree, smooth surface.

floating fish feed extruder machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing pellets can float on water surface for over 12 hours,.According to your capacity and material ,We will suggest you different model floating fish feed machine.

Product Description

Raw materials Big capacity pet food extruder dry wet type cat dog fish food making machine with low price corn soybean processing machine : Wheat meal, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, corn meal, meat meal, etc. Moisture of raw material:20%-25% Oil content: ≤10% Starch content: ≥30% Raw material type: powder

Final Products: Fish feed, dog food, shrimp feed, frog feed, poultry feed, fox feed, textured soybean protein, etc.

Model	Capacity t/h	Main Power	feeding power	screw dia	cutting power	conditioner power	Weight
DSP 85-B	0.35-0.4	22kw	1.1kw	80	0.75kw	1.5kw	1000kg
DSP 90-B	0.5-0.6	30kw	1.1kw	90	1.1kw	2.2kw	2000kg
DSP100-B	0.6-0.7	37kw	1.1kw	100	1.1kw	3kw	2100kg
DSP120-B	0.7-0.8	55kw	1.1kw	120	1.5kw	3kw	2200kg
DSP135-B	1.0-1.5	75kw	1.5kw	135	2.2kw	5.5kw	3200kg
DSP145-B	2.0-3.0	90kw	2.2kw	145	2.2kw	7.5kw	4000kg
DSP160-B	3.0-4.0	110kw	2.2kw	160	3kw	11kw	4500kg
DSP175-B	4.0-5.0	132kw	3.0kw	175	3kw	15kw	5000kg

Detailed Photos Final products Our factory
2.Can make different feed, this model can do: suspended aquatic feed particles, sediment fish, shrimp and crab feed particles, pet feed particles, fishing fish feed particles and so on. International advanced grain cutting structure, soft knife fitting form, achieve infinitely variable speed, can cut the material into the required length of products, not easy to produce burr.
3.Novel design, unique, simple structure, easy to install and disassemble, easy to operate.

Model	Efficiency(kg/h)	Power(kw)	Spiral diameter(mm)	Weight(kg)	Packing size
DGP-40	40-50	5.5(220V/380V)	Φ40	350	1.36*1.60*0.85m
DGP-60B	120-150	15	Φ60	450	1.36*1.67*0.85m
DGP-70B	180-200	18.5	φ70	490	1.36*1.67*0.85m
DGP-80B	250-300	22	φ80	600	1.36*1.95*0.84m
DGP-90B	400	30	φ90	800	1.8*2.6*1.15m
DGP-100B	500	37	φ100	800	1.8*206*1.15m
DGP-120B	600-700	55	Φ120	950	2.2*2.8*1.2m
DGP-135B	750-800	75	φ133	950	2.2*2.8*1.2m
DGP-160	1000-1200	90	φ160	1200	2.3*3.0*1.2m
DGP-200	1800-2000	110	φ160	1450	2.4*3.2*1.4m
NOTE	Screw can be added to increase output(For example, the screw output of DGP-80 3 section is 250-300kg/h, and the screw output of 4 section is 300-350kg/h)
